Lecture 09 - 25 October 2021

Fourier Transforms

Up to now the focus was on two main kind of Fourier Transforms:

Fourier Integral (\(\mathcal{L}^2\) functions, based on Fourier theorem)

\[\begin{align*} f(t)&=\frac{1}{2\pi}\int_{-\infty}^{+\infty}\tilde{F}(\omega)e^{-i\omega t} d\omega \qquad \text{Inverse Fourier Transform} \\ \tilde{F}(\omega)&=\int_{-\infty}^{+\infty}f(t)e^{i\omega t} dt \qquad \text{Fourier Transform} \end{align*}\]

Fourier Series (for periodic functions)

\[\begin{align*} f(t)=\sum_{k} a_k e^{-i\omega_k t} \qquad \omega_k=\frac{2\pi}{T}k \qquad \text{Fourier Series}\\ a_k=\frac{1}{T}\int_{-\frac{T}{2}}^{\frac{T}{2}} f(t) e^{i\omega_k t}dt \qquad \qquad \text{Fourier Coefficients}\\ \end{align*}\]

The Fourier series needs the functions considered to be periodic. A quick fix for that is to truncate the function when they are sufficiently close to zero and periodically repeat them.

import matplotlib.pyplot as plt
import numpy as np

##############
# PARAMETERS #
##############
T=5 # When to truncate the function
tau = 20
omega = np.linspace(start=0, stop=20, num=1000, endpoint=True)

lp = np.abs(1/(1-1j*omega*tau) )

#########
# PLOTS #
#########
fig, ax = plt.subplots(1, 1, figsize=(15, 4))

idx = (np.abs(omega - T)).argmin() # Closest value to T

ax.plot(omega[:idx], lp[:idx], "b", label="Low Pass")
ax.plot(omega[idx:], lp[idx:], "b-.", label="Low Pass")
ax.vlines(x=T, ymin=0, ymax=1, color="k", label="Truncation")

idx = (np.abs(omega - T)).argmin() # Closest value to T
i=1;
while ((i+1)*idx)<omega.shape[0]:
    ax.plot(omega[i*idx:(i+1)*idx], lp[:idx], "--", label="Repetition {:d}".format(i))
    ax.vlines(x=(i+1)*T, ymin=0, ymax=1, color="k")
    i=i+1

ax.plot(omega[i*idx:], lp[:omega.shape[0]-i*idx], "b--", label="Repetition {:d}".format(i))



ax.grid()
ax.legend()
fig.tight_layout()
plt.show()

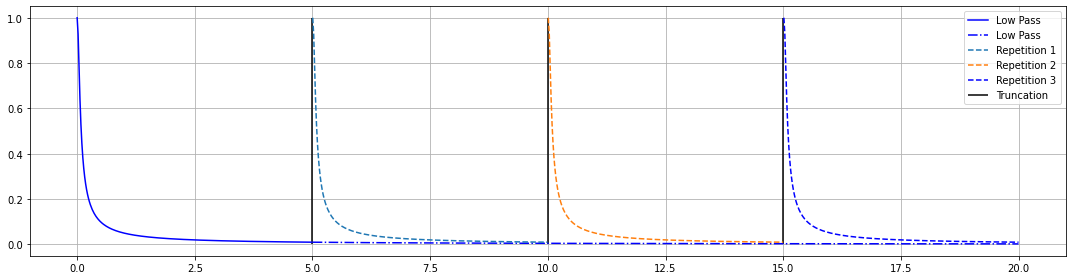

_images/21-10-25 L09_1_0.png

Discrete Fourier Transform

The discrete Fourier Transform (DFT) is the discrete version of the Fourier Transform that does not require the computation of integrals. The Fast Fourier Transform (FFT) is a faster way (\(\mathcal{O}(Nlog(N))\) instead of \(\mathcal{O}(N^2)\)) to compute the DFT with some minor additional constraints. Let’s walk through the DFT:

Assumption

Assume a function \(f\) which is periodic (\(f(t+T)=f(t)\)) and has period equal to an even multiple of the sampling time T: \(T_f=NT, N\in\mathcal{N}^{+}_{even}\).

The Fourier series of such a function is:

\[\begin{align*} f(t)&= \sum_k a_k e^{- i\frac{2\pi k}{NT}t} \\ a_k&= \frac{1}{NT} \int_{-\frac{NT}{2}}^{\frac{NT}{2}} f(t) e^{i\frac{2\pi}{NT}kt} dt = \int_{0}^{NT} f(t) e^{i\frac{2\pi}{NT}kt} dt\qquad \omega_k = \frac{2\pi}{NT}k, \quad k\in \mathcal{Z}\\ \end{align*}\]
import matplotlib.pyplot as plt
import numpy as np

##############
# PARAMETERS #
##############
omega = np.linspace(start=0, stop=2, num=100, endpoint=True)


#########
# PLOTS #
#########
fig, ax = plt.subplots(1, 2, figsize=(15, 3))

idx = (np.abs(omega - 1)).argmin() # Closest value to 2*pi

ax[0].plot(omega[:idx], np.cos(2*np.pi*omega[:idx]), "b", label="Considered interval")
ax[0].plot(omega[idx:], np.cos(2*np.pi*omega[idx:]), "k--", label="Repetition")

idx_s = (np.abs(omega - 0.5)).argmin() # Closest value to pi
idx_e = (np.abs(omega - 1.5)).argmin() # Closest value to 3*pi
ax[1].plot(omega[:idx_s], np.cos(2*np.pi*omega[:idx_s]), "k--", label="Repetition")
ax[1].plot(omega[idx_s:idx_e], np.cos(2*np.pi*omega[idx_s:idx_e]), "b", label="Considered interval")
ax[1].plot(omega[idx_e:], np.cos(2*np.pi*omega[idx_e:]), "k--", label="")


ax[0].grid(); ax[1].grid()
ax[0].legend(); ax[1].legend()
fig.tight_layout()
plt.show()

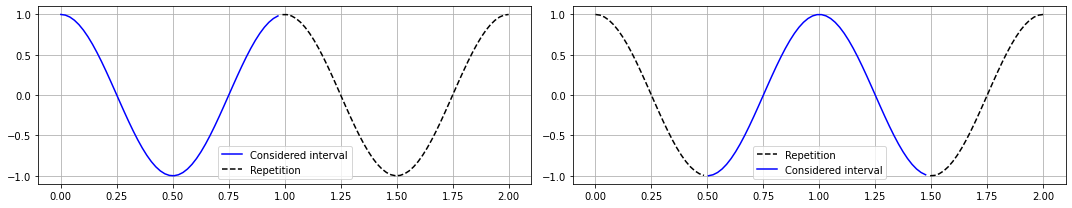

_images/21-10-25 L09_3_0.png

A minimal assumption that is essential to make is that

Assumption

\(f(t)\) is \(\frac{\pi}{T}\) band limited.

This assumption is minimal because one usually works with physical signals that needs to be sampled according to the Nyquist-Shannon theorem:

\[\begin{align*} -\frac{\pi}{T}\leq \omega_k \leq \frac{\pi}{T} \rightarrow -\frac{N}{2}\leq k < \frac{N}{2} \end{align*}\]

That explains why N was choosen even too. The series can then be split into two terms depending on the value of \(k\):

\[\begin{align*} f(t)&= \sum_{k=-\frac{N}{2}}^{\frac{N}{2}-1} a_k e^{-i\frac{2\pi}{NT}kt} = \sum_{k=0}^{\frac{N}{2}-1} a_k e^{-i\frac{2\pi}{NT}kt} + \sum_{k=-\frac{N}{2}}^{-1} a_k e^{-i\frac{2\pi}{NT}kt} \end{align*}\]

It is possible to perform a change of variable in the second summation:

\[\begin{align*} \sum_{k=-\frac{N}{2}}^{-1} a_k e^{-i\frac{2\pi}{NT}kt} = \sum_{k'=\frac{N}{2}}^{N-1} a_{k'-N} e^{-i\frac{2\pi}{NT}(k'-N)t} \qquad k'&=N+k\\ k&= k'-N \end{align*}\]

so that the Fourier series becomes:

\[\begin{align*} \require{cancel} f(t)&= \sum_{k=0}^{\frac{N}{2}-1} a_k e^{-i\frac{2\pi}{NT}kt} + \sum_{k=-\frac{N}{2}}^{-1} a_k e^{-i\frac{2\pi}{NT}kt} \\ &= \sum_{k=0}^{\frac{N}{2}-1} a_k e^{-i\frac{2\pi}{NT}kt} + \sum_{k=\frac{N}{2}}^{N-1} a_{k-N} e^{-i\frac{2\pi}{NT}kt}e^{i\frac{2\pi}{\cancel{N}T}\cancel{N}t} \end{align*}\]

As it was stated before, a physical signal is usually band limited and sampled with sampling time T:

\[\begin{align*} f[n]=f(nT)&= \sum_{k=0}^{\frac{N}{2}-1} a_k e^{-i\frac{2\pi}{N\cancel{T}}kn\cancel{T}} + \sum_{k=\frac{N}{2}}^{N-1} a_{k-N} e^{-i\frac{2\pi}{N\cancel{T}}kn\cancel{T}}\cancelto{1}{e^{i\frac{2\pi}{T}nT}} \\ &= \sum_{k=0}^{\frac{N}{2}-1} a_k e^{-i\frac{2\pi}{N}kn} + \sum_{k=\frac{N}{2}}^{N-1} a_{k-N} e^{-i\frac{2\pi}{N}kn} \end{align*}\]

this leads to a new series defined as:

\[\begin{align*} F_k = \begin{cases} a_k N \quad &\text{if } 0\leq k<\frac{N}{2} \\ a_{k-N}N \quad &\text{if } \frac{N}{2}\leq k<N \\ \end{cases} \quad \iff \quad a_k = \begin{cases} \frac{F_k}{N} \quad &\text{if } 0\leq k<\frac{N}{2} \\ \frac{F_{k+N}}{N} \quad &\text{if } -\frac{N}{2}\leq k<0 \\ \end{cases} \end{align*}\]

this new series allows to merge the two summations:

\[\begin{align*} f[n] &= \sum_{k=0}^{\frac{N}{2}-1} \frac{F_k}{N} e^{-i\frac{2\pi}{N}kn} + \sum_{k=\frac{N}{2}}^{N-1} \frac{F_k}{N}e^{-i\frac{2\pi}{N}kn} \\ &= \frac{1}{N}\sum_{k=0}^{N-1} F_ke^{-i\frac{2\pi}{N}kn} \quad \text{Inverse DFT} \end{align*}\]

As it is clear from the previous formula, the Inverse DFT allows us to compute the integral \(a_k=\frac{1}{T}\int_{-\frac{T}{2}}^{\frac{T}{2}} f(t) e^{i\omega_k t}dt\) without needing to perform any kind of integration. Furthermore:

\[\begin{align*} \sum_{n=0}^{N-1}f[n]e^{i \frac{2\pi}{N}nl} &= \sum_{n=0} e^{i\frac{2\pi}{N}nl} \left(\frac{1}{N}\sum_{k=0}^{N-1}F_k e^{-i\frac{2\pi}{N}nk} \right)\\ &= \sum_{k=0} \frac{F_k}{N}\left[\sum_{n=0}^{N-1} e^{i\frac{2\pi}{N}n(l-k)}\right] \qquad [...]=\begin{cases} \frac{1-e^{i2\pi/(l-k)}}{1-e^{i2\pi/(N(l-k))}}=0 \quad \text{if } l\not=k\\ N \quad \text{if } l=k \end{cases} \\&= \sum_{k=0}^{N-1}F_k \delta_{l,k}=F_l \end{align*}\]

This relation provides an expression for the DFT. Summing up:

Discrete Fourier Transform

\[\begin{align*} F_k = \sum_{n=0}^{N-1}f[n]e^{i \frac{2\pi}{N}nl} \end{align*}\]

Inverse Discrete Fourier Transform

\[\begin{align*} f[n]=\frac{1}{N}\sum_{k=0}^{N-1} F_ke^{-i\frac{2\pi}{N}kn} \end{align*}\]

It’s is essential to remark that what was found is a way to compute a continuous transform \(\mathcal{FT}\) using only discrete summations which computers can handle very well and with minimum errors.

Properties of the DFT

Periodicity

In time

\[\begin{align*} f[n+T]=\sum_{k=0}^{N-1}F_k e^{-i\frac{2\pi}{T}(n+T)k}=\sum_{k=0}^{N-1}F_k e^{-i\frac{2\pi}{T}nk} = f[n] \end{align*}\]

In Frequency

\[\begin{align*} F_{k+N} = \sum_{n=0}^{N-1}f[n]e^{i \frac{2\pi}{N}n(k+N)} = \sum_{n=0}^{N-1}f[n]e^{i \frac{2\pi}{N}nk} = F_k \end{align*}\]

Perceval relation

Warning

As the actual energy of a periodic signal is infinite. For that reason, when talking about energy for a periodic signal, only one period is taken into account.

\[\begin{align*} \sum_{n=0}^{N-1} \left| f[n]\right|^2 &= \sum_{n=0}^{N-1} \left( \frac{1}{N}\sum_{k=0}^{N-1}F_ke^{-i \frac{2\pi}{N}nk} \right)\left( \frac{1}{N} \sum_{l=0}^{N-1}F_l^* e^{i \frac{2\pi}{N}nl} \right) \\ &= \frac{1}{N^2} \sum_{k=0}^{N-1} \sum_{l=0}^{N-1} F_k F_l^* \cancelto{\delta_{l,k}}{\sum_{n=0}^{N-1}e^{i\frac{2\pi}{N}n(l+k)}} \\ \implies & \sum_{n=0}^{N-1} \left| f[n]\right|^2 = \frac{1}{N^2}\sum_{n=0}^{N-1} \left| F_k\right|^2 \end{align*}\]

Finally, before moving to a small exercise, let’s introduce a new notation:

\[\begin{align*} \begin{array}{l} f_n &= f[n] \\ W_N&=e^{i\frac{2\pi}{N}} \quad \text{(Twiddle Factor)}\\ \end{array} \implies \begin{array}{l} f_n &= \frac{1}{N}\sum_{k=0}^{N-1}F_k (W_N^*)^{nk} \qquad 0\leq k, n < N \\ F_k &= \sum_{n=0}^{N-1} f_n W_N^{nk} \end{array} \end{align*}\]

These two are the conventional form of the DFT and its inverse.

Example

Let’s now evaluate the Fourier transform of the cosine with the following parameters:

\[\begin{align*} N &= 8 \\ f &= \frac{1}{4T} \\ t &= nT \\ f_n &= cos\left( 2\pi f t\right) = cos\left( \frac{2\pi}{4T} nT \right) = cos\left( \frac{\pi}{2}n\right) \end{align*}\]
import matplotlib.pyplot as plt
import numpy as np

##############
# PARAMETERS #
##############
n = np.linspace(start=0, stop=8, num=8, endpoint=False)
t = np.linspace(start=0, stop=7, num=100, endpoint=True)

#########
# PLOTS #
#########
fig, ax = plt.subplots(1, 1, figsize=(15, 3))

ax.plot(t, np.cos(np.pi/2 * t), "b", label=r"$cos\left( \frac{\pi}{2}n\right)$")
ax.plot(n, np.cos(np.pi/2 * n), "ko", label="Samples")

ax.grid()
ax.legend()
fig.tight_layout()
plt.show()

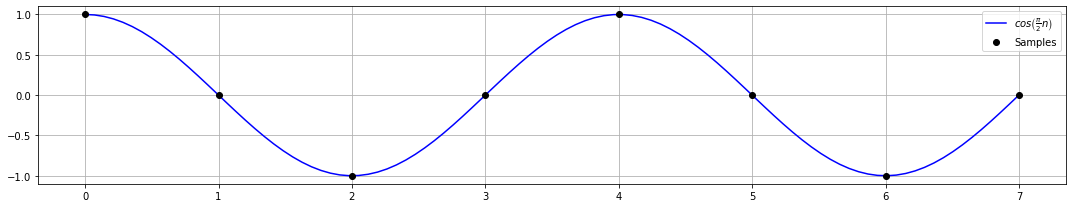

_images/21-10-25 L09_5_0.png
\[\begin{align*} F_k &= \sum_{n=0}^{7} e^{i \frac{2\pi}{8}nk}f_n \qquad m=\frac{n}{2}\\ &= \sum_{n=0}^{3}e^{i\frac{\pi}{2}mk}f_{2m} \\ &= \sum_{n=0}^{3}e^{i\frac{\pi}{2}mk} (-1)^m \\ &= 1 - e^{i\frac{\pi}{2}k} + e^{i\pi k} - e^{i\frac{3}{2}\pi k} \\ &= 1 + (-1)^k - e^{i\frac{\pi}{2}k}\left[ 1+(-1)^k \right] \\ &= \left[ 1 + (-1)^k \right] \left[ 1-e^{i\frac{\pi}{2}k} \right] \\ &= \begin{cases} 0 \qquad \text{if } k=0,4 \\ 0 \qquad \text{if } k=1,5 \\ 4 \qquad \text{if } k=2,6 \\ 0 \qquad \text{if } k=3,7 \\ \end{cases} \end{align*}\]

Or, in an other way:

\[\begin{align*} a_{-4}&=\frac{F_{-4+8}}{8}=\frac{F_4}{8}=0 \qquad a_0=0 \\ a_{-3}&=0 \qquad\qquad\qquad\qquad a_1=0\\ a_{-2}&=1/2 \qquad\qquad\qquad\quad\ a_2=1/2\\ a_{-1}&=0 \qquad\qquad\qquad\qquad a_3=0 \\ \\ \implies& cos(2\pi ft) = \frac{1}{2}e^{-i 2\pi ft}+\frac{1}{2}e^{i 2\pi ft} \end{align*}\]

which is in accordance with the known

\[\begin{align*} cos(2\pi ft) = \frac{e^{i 2\pi ft}+e^{-i 2\pi ft}}{2} \end{align*}\]
